System Overview
HASE uses three types of files to specify a simulation: EDL
(project.edl), EL (project.elf) and Hase++ (entity.hase) files.
The EDL file describes the components of the architecture, their ports
and parameters, the links between them and the hierarchical structure
(in essence the logical structure of the experiment).
The EL file contains information relevant to the physical
display, i.e. where components and ports are positioned on the
screen, and any variables to be displayed. When creating the display,
HASE also uses gif icons to represent the components on screen.
The Hase++ files specify the behaviour of each of the entities.
Building the Executable

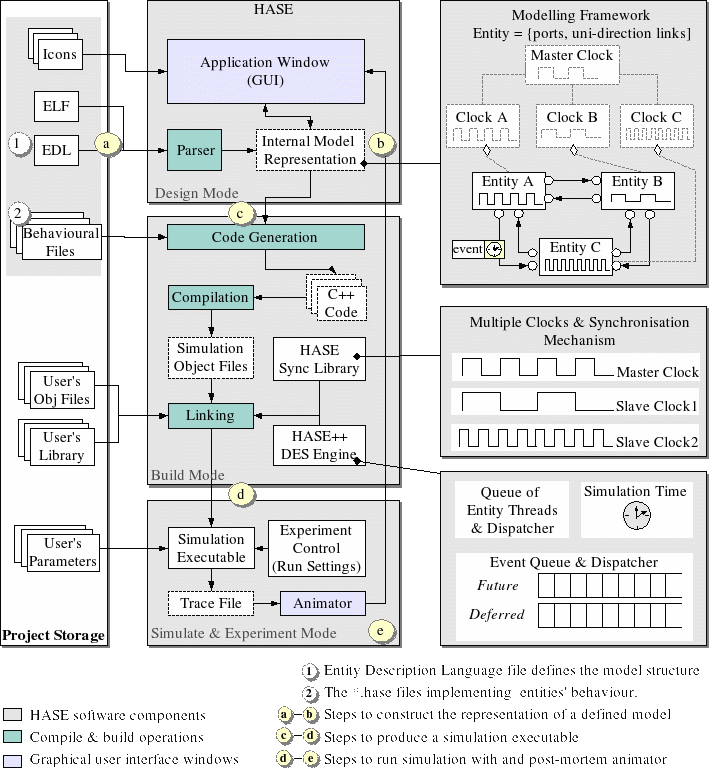

The figure below shows the process used by HASE to convert the EDL and Hase++
files into an executable simulation.
The EDL file specifies the entities to be used to construct the system
to be simulated, which tells HASE which behaviour files are required
for the simulation. The relevant Hase++ files are then converted into
C++ files, as well as generating a project C++ and header file. These
files are then compiled to form the simulation executable. When the
Simulation Executable is run, HASE also uses user-supplied values for
the Parameters.
Simulation
During a simulation run, HASE writes an event sequence into an event
Trace File and this trace can subsequently be played back to provide
the user with a visual display of activity in the system. The trace
is produced automatically from the simulation model without the need
for the user to write explicit animation code.
Animation
The Animator allows the user to check that the model produces correct
results. Activity in the simulation model is visualised in a variety
of ways, e.g. through moving icons showing data packets passing
between components in the design window, by changes to a component's
icon to reflect its current state and by the changing contents of
registers and memories in the Project Inspector panel.
