com.sun.msv.reader.xmlschema
Class RedefinableDeclState

java.lang.Object
  |
  +--com.sun.msv.reader.State
        |
        +--com.sun.msv.reader.SimpleState
              |
              +--com.sun.msv.reader.ExpressionState
                    |
                    +--com.sun.msv.reader.ExpressionWithChildState
                          |
                          +--com.sun.msv.reader.xmlschema.RedefinableDeclState

All Implemented Interfaces:

ContentHandler, ExpressionOwner

Direct Known Subclasses:

AttributeGroupState, ComplexTypeDeclState, GroupState

public abstract class RedefinableDeclState

extends ExpressionWithChildState

state that parses redefinable declaration. "Declarations" are attribute, element, complexType, group, and attributeGroup. simpleType is treated differently.

When this state is used under states other than RedefineState, this class doesn't do anything. When used under RedefineState, this class does several tricks to make redefinition easy.

Redefinition is done in the following steps.

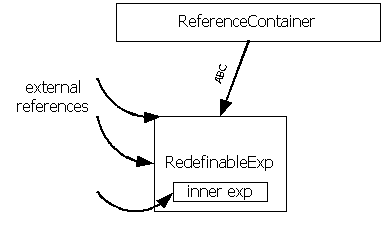

Step.1

First, say redefinition of declaration "ABC" is found, "ABC" has already defined once and it is

• referenced from ReferenceContainer by name, and
• referenced from other expressions directly.

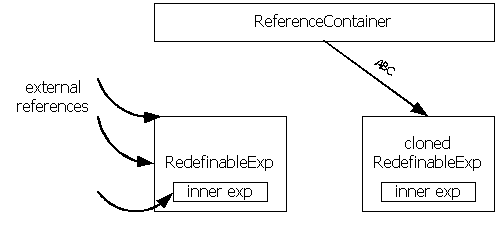

Step.2

In startSelf method, this class clones the current definition, and updates ReferenceContainer to point to the cloned definition (right side).

Note that other expressions hold direct reference to the original definition (left side), and these references are not affected by this update.

Step.3

Body of redefinition is parsed and corresponding expression is created by derived class. This step is done no differently.

Since ReferenceContainer has updated, any reference to this expression found during this step is bound to the cloned definition. This self reference usually happens.

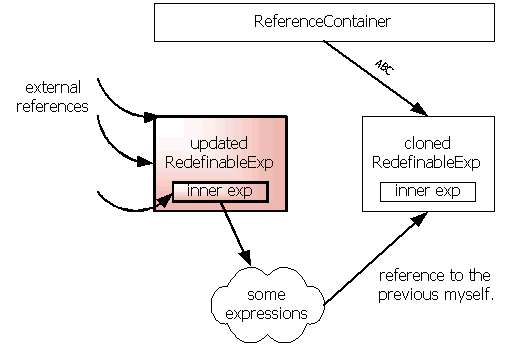

Step.4

After the body of redefinition is parsed, the original definition (left side) is updated by using new expression.

From now on, redefinition becomes visible to all expressions that hold direct reference to the original definition. The cloned definition is kept as-is so that any self reference found in the body will be maintained correctly.

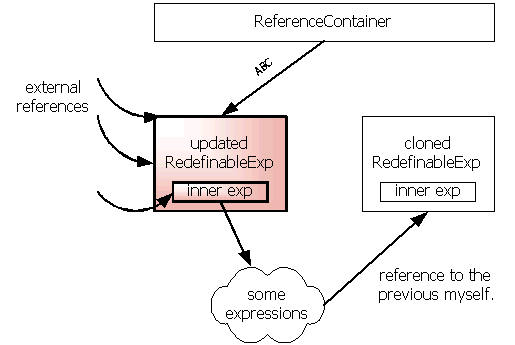

Step.5

Finally, ReferenceContainer is updated again to point to the updated definition. Therefore successive reference to "ABC" will be bound to the updated definition. Cloned old definition is kept as-is.

Fields inherited from class com.sun.msv.reader.State

reader

Constructor Summary

RedefinableDeclState()

Methods inherited from class com.sun.msv.reader.ExpressionWithChildState

onEndChild

Methods inherited from class com.sun.msv.reader.SimpleState

endDocument, endElement, startElement

Methods inherited from class com.sun.msv.reader.State

characters, endPrefixMapping, getBaseURI, getLocation, getStartTag, ignorableWhitespace, processingInstruction, setDocumentLocator, skippedEntity, startDocument, startPrefixMapping

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

RedefinableDeclState

public RedefinableDeclState()
